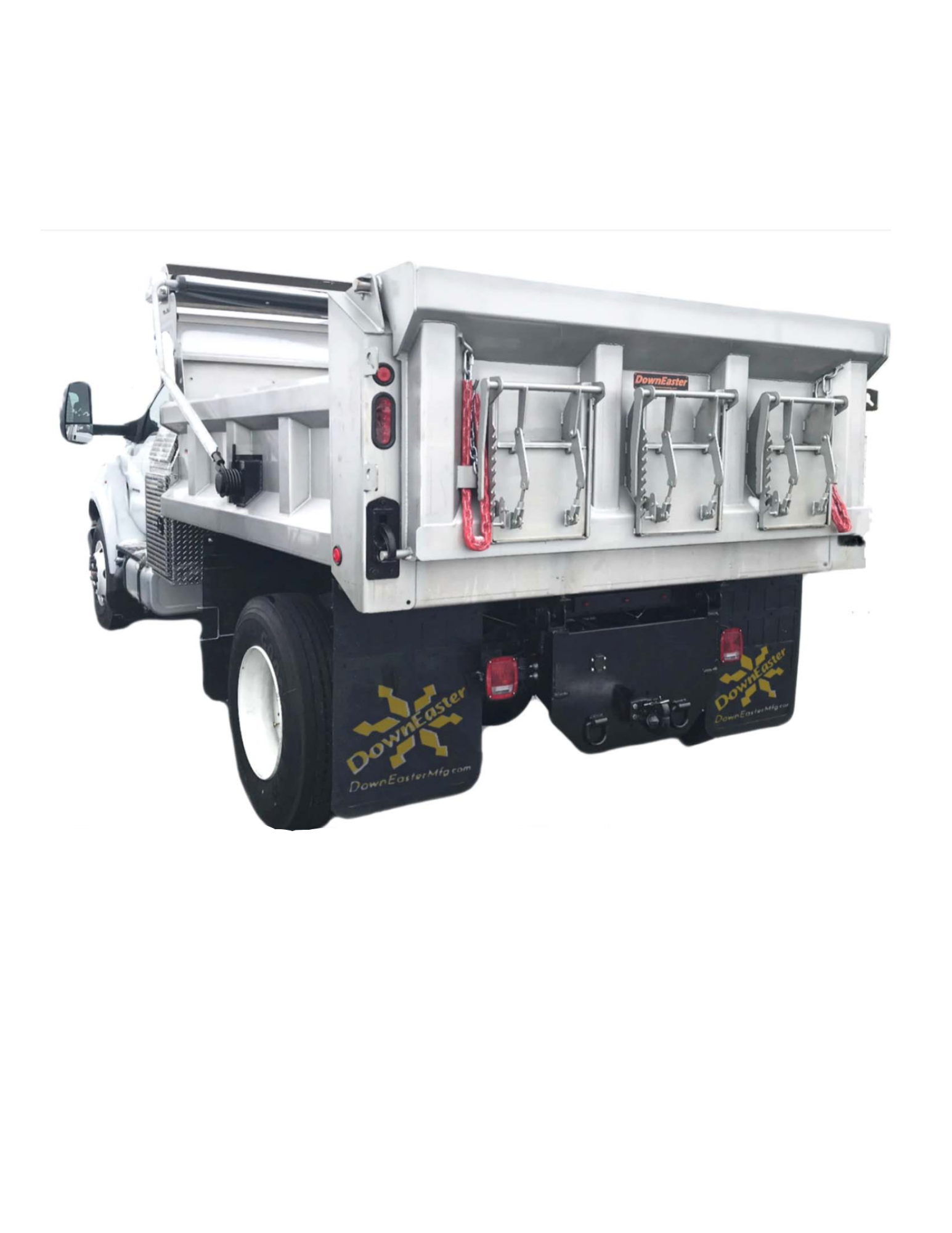

XD DUMP BODIES - CLASS 6-8

General

• ATSM 572 Grade 50 high-tensile steel (65ksi) used throughout the body interior
• 10-gauge Grade 50 front panel with integral stiffener
• Double-panel side plates exceeding 5/16" total thickness
• 10-gauge outer side panels for durability and tailgate retention.
• Full-depth 3/16" rear corner pillars featuring recessed lighting, keyhole banjo eyes, and lower tailgate pin reciever
• Dirt-shedding , sloped design on side plates and tailgate top
• Class 70 dual cylinder hoist
• All lighting is LED rubber-mounted and fully compliant with NTEA and federal standards
• Mounting hardware and brackets provided
• Our products come acid etched, phosphate washed, with corrosion resistant epoxy primer and then baked for a strong superior finish
• 3 year limited warranty

• 3/16" Grade 50 floor with radius corners and single weld seam
• 10"x 3/16" formed long sills with interlaced crossmembers
• 4" x 5.7 Ib. channel crossmembers, including 3/16" formed crossmembers over the hoist
• Greaseable bronze bearings for underbody release mechanisms
• Standard front-handle tailgate release
• Mounted & painted subframe for ease of installation
• Dual safety props for added security

• Formed 3/16" Grade 50 inner panel with 10-gauge outer and end panels
• 1-1/4" lower lock pins with forged latch lock fingers
• Adjustable 5/16" chain for spreading aggregate material & holding gate in down position
• Integrated tarp hooks
• 1.50" diameter 4140 steel hinge pins

• Adjustable bolt-on, 10-gauge (12-gauge SS) cab protector, for ease of install and future optional custom overhang
• Standard 24" (1/2 cab) overhang
• Pre-punched tarp mounting provisions

• Stainless steel body construction
• Manual or spring loaded tarp assembly
• Coal chute(s), installed (painted or stainless steel)
• Air-powered tailgate lock release cylinder
• Electric-over-hydraulic pump
• 12" spreader apron, bolt-on or weld-on
• Secondary oval knockout in rear post for flashing or turn signal lights
• Up to three vertical braces per side for added strength
• Pre-punched oval cutouts for side and front-facing flashing lights
