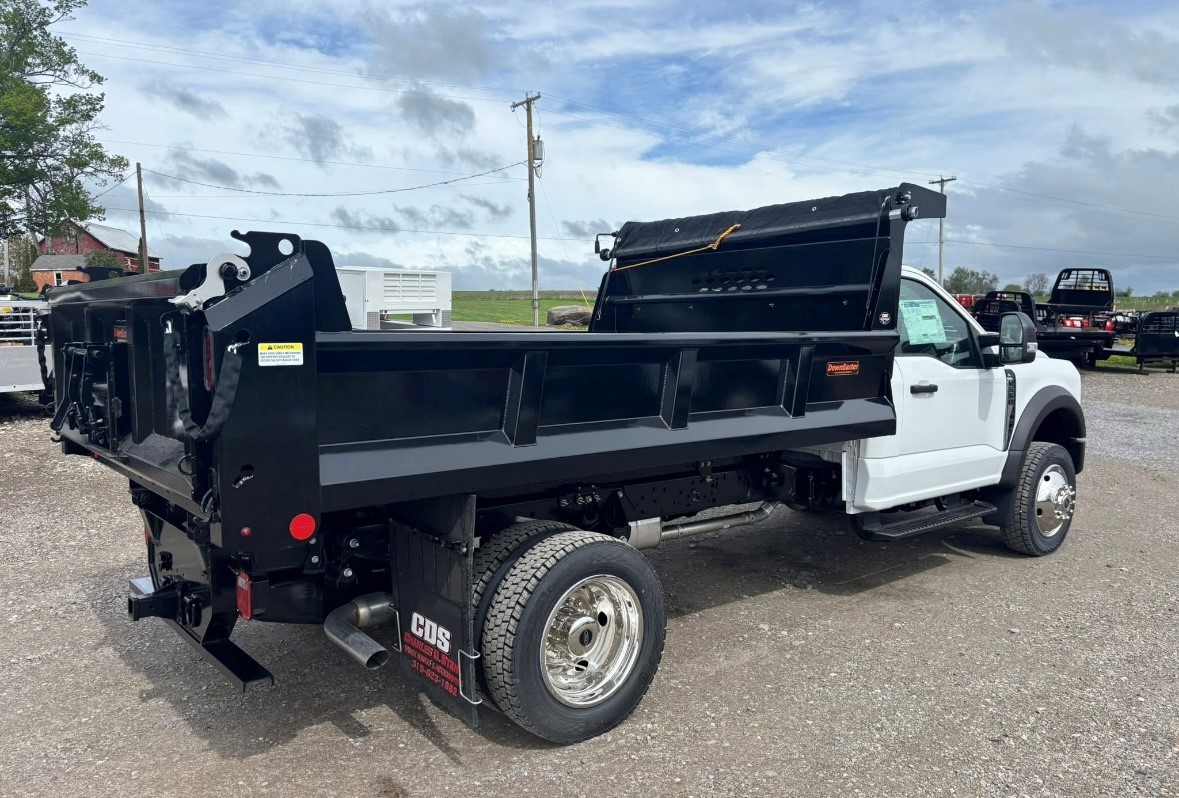

DUMP BODIES - CLASS 3-6

GENERAL

• 10-gauge construction throughout for superior strength and longevity
• Sloped side plates and tailgate top designed to shed dirt and debris effeciently
• Double-panel side plates provide a combined thickness of over 1/4"
• Full depth 3/16"rear corner pillars feature integrated recessed lighting
• Keyhole banjo eyes and lower tailgate pin receiver
• All lighting is LED rubber-mounted and fully compliant with NTEA and federal standards.
• 2-1/2" reduced deck height (9′ only)
• Mounting height of 9.5" chassis to floor (9′ only)
• Self-aligning rear latch release for the top gate pins
• Integrated tarp hooks
• Our products come acid etched, phosphate washed, with corrosion resistant epoxy primer and then baked for a strong superior finish
• 3 year limited warranty

• 4" x 5.7 Ib. channel long sills and 3" channel crossmembers (9′ only)
• 6" x 8.2 Ib. channel long sills (11′ only)
• 3/16" stainless formed 7" long sills (SS body)
• 3" stainless tubing interlaced crossmembers (SS body)
• Two-piece 10-gauge floor with 45 degree slopped corners
• Greaseable bronze bearings for underbody release mechanisms

• Formed 10-gauge inner, outer, and end panels.
• Stainless steel latch assemblies
• 1" hardened pins with latch receiving lock fingers
• Adjustable 1/4" chain for spreading aggregate material & holding gate in down position
• 22" height for 13" side dump bodies
• 27" height for 18" side dump bodies

• Adjustable bolt-on 10-gauge (12-gauge SS) cab protector, for ease of install & future optional custom overhang
• 18" (1/4 cab) overhang cab protector
• Pre-punched tarp mounting provisions
• Slotted dual windows

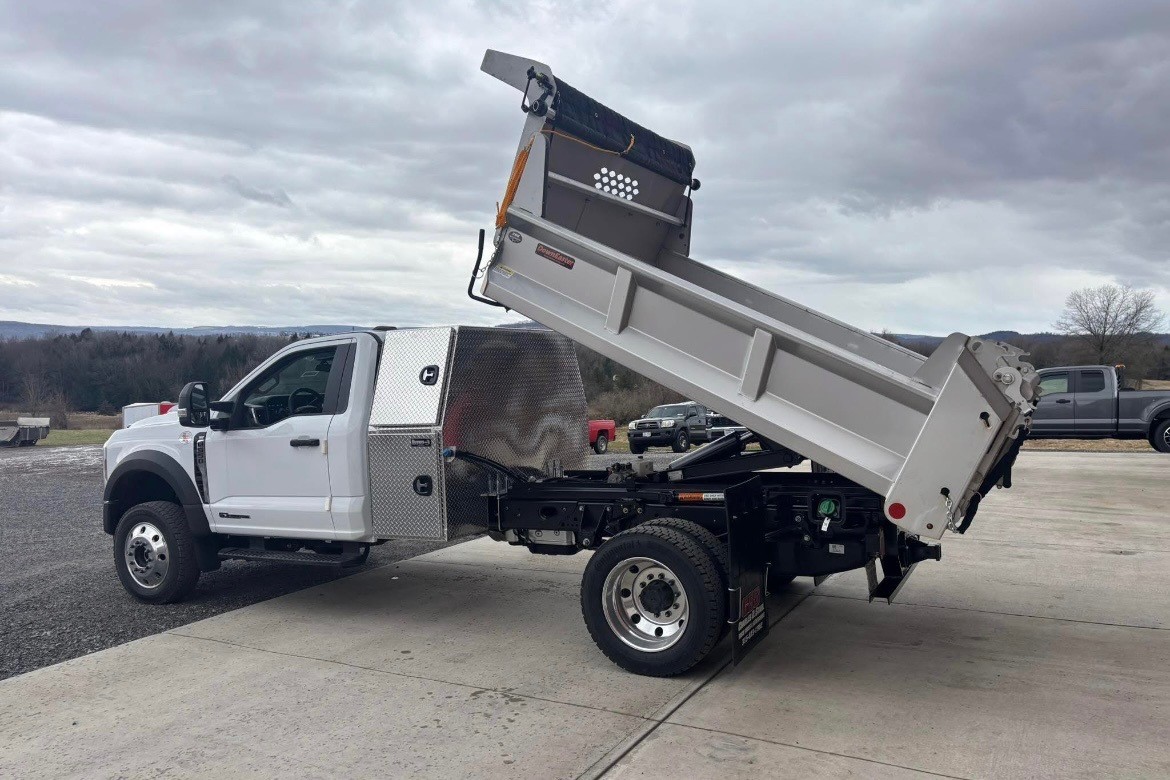

• Stainless steel body construction (excluding DED0888)
• Drop-side body construction
• 30" or 40" cab shield
• Manual or spring-loaded tarp assembly
• 3/16" floor upgrade
• 10" board extension pockets
• Coal chute(s), installed (painted or stainless)
• Backup, running, or strobe lights in apron
• Subframe/hoist/pump delete options
